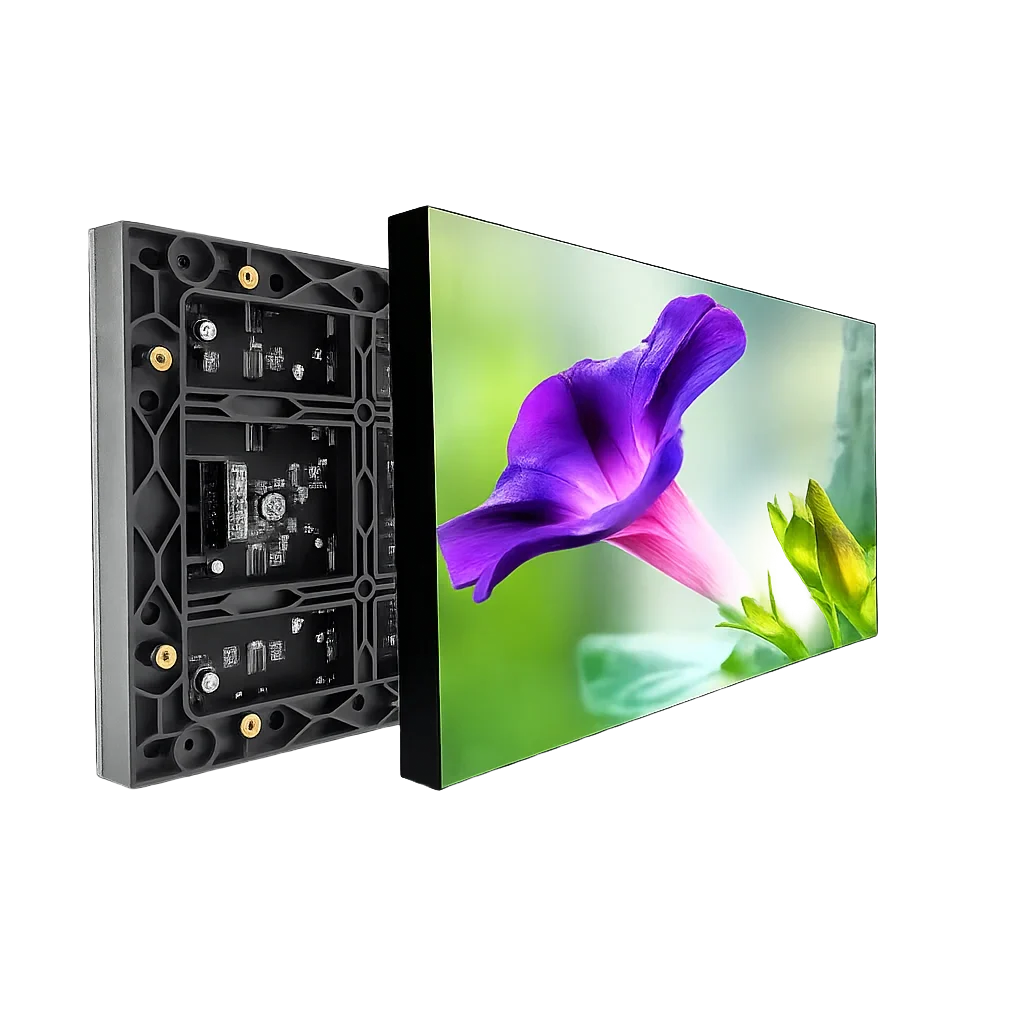

P1.25 COB Indoor LED Display Screen

Indoor LED Display

P1.25 COB Indoor LED Display Screen

10,500 - 15,000

Key Features

  • P1.25 fine pixel pitch for ultra-clear close-viewing
  • COB LED technology for better durability and stable performance
  • 256x128 pixel module resolution
  • 640000 dots/m2 high pixel density
  • 500 cd/m2 brightness for indoor environments
  • 3840Hz standard refresh rate, 7680Hz optional
  • 5000:1 contrast ratio for sharp image depth
  • 2K and 4K video support
  • 100000 hours lifespan
  • BIS, CE, CB, ROHS, and EAC certified

Specification Description

The P1.25 Indoor LED Display is designed for premium indoor applications where high resolution, smooth visuals, and reliable performance are essential. With a 1.25mm pixel pitch and COB LED type, it delivers sharp image quality for close viewing in conference rooms, control rooms, studios, retail spaces, and corporate environments. The module offers 256x128 pixel resolution with 640000 dots/m2 pixel density, ensuring detailed content presentation. Its 500 cd/m2 brightness, 5000:1 contrast ratio, and 140 degree horizontal and vertical viewing angle provide clear visibility from different positions. The display supports 3840Hz standard refresh rate with optional 7680Hz, making video playback smooth and flicker-free. It also supports 2K and 4K video input, 12-14 bit processing depth, and adjustable 2000K-9300K color temperature. With low typical power consumption, long 100000-hour lifespan, and international certifications, this COB LED Display is suitable for professional Indoor LED Display, Digital Signage, and LED Video Wall projects.

Specification Table

Pixel Pitch
1.25mm
LED Type
COB
Module Resolution
256x128 = 32768 pixels
Pixel Density
640000 dots/m2
Module Size
W320mm x H160mm x D16.6mm
Module Weight
0.48+/-0.02kg
HUB
HUB320
Single-dot Brightness Calibration
Support
Brightness
500 cd/m2
Color Temperature
2000K-9300K Adjustable
Viewing Angle
140 degree / 140 degree
Brightness/Color Uniformity
>=98%
Contrast Ratio
5000:1
Max Input Power
586 W/m2
Typical Input Power
176 W/m2
Power Supply Input Voltage
AC90-132V / AC186-264V, 47-63Hz
Frame Changing Frequency
60Hz
Refresh Rate
3840Hz Standard / 7680Hz Optional
Processing Depth
12-14 Bit
Video Support
2K, 4K
Life Span
100000 Hours
Working Temperature/Humidity
-20C-45C / 10%-50%RH
Storage Temperature/Humidity
-20C-50C / 10%-60%RH
Certification
BIS / CE / CB / ROHS / EAC
