Outdoor LED Display

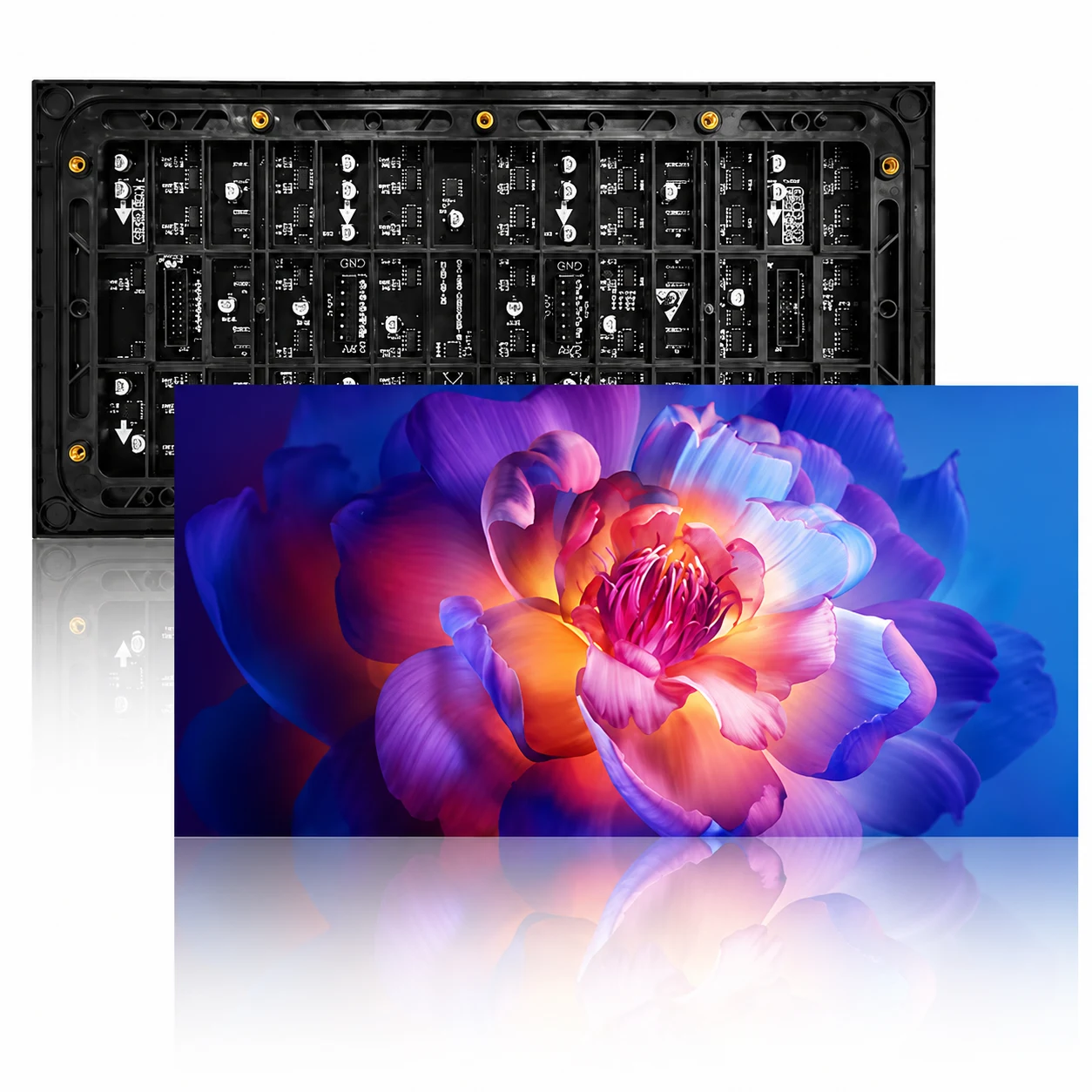

P4 Outdoor LED Display Module
৳ 3,500 - 5,500
Key Features
- 4mm pixel pitch for clear outdoor viewing
- SMD1921 LED technology with 62500 dot/m2 pixel density
- 5000-5500 cd/m2 brightness for outdoor visibility
- 3840Hz refresh rate with 12-14 bit processing depth
- Reliable 100000-hour lifespan for commercial installations
Specification Description
The P4 outdoor LED display module features a 4mm pixel pitch, SMD1921 LED technology, 80x40 module resolution, 62500 dot/m2 pixel density, 5000-5500 cd/m2 brightness, 3840Hz refresh rate, and 5000:1 contrast ratio. It is suitable for outdoor billboards, building signage, roadside advertising, commercial displays, and public information screens that need bright, stable, and long-lasting visual performance.
Specification Table
Pixel Pitch
4mm
LED Type
SMD1921
Module Resolution
80x40 = 3200 Pixels
Pixel Density
62500 dot/m2
Module Size
W320mm x H160mm x D18.4mm
Module Weight
0.49+/-0.02kg
HUB
HUB75
Single-dot Brightness Calibration
Support
Brightness
5000-5500 cd/m2
Color Temperature
6500K (1000K-9500K Adjustable)
Beam Angle
140deg / 140deg
Brightness/Color Uniformity
>=98%
Contrast Ratio
5000:1
Input Power Max
879 W/m2
Input Power Typical
293 W/m2
Power Supply Input Voltage
AC90-132V / AC186-264V, 47-63Hz
Frame Changing Frequency
60Hz
Refresh Rate
3840Hz
Processing Depth
12-14 Bit
Video Support
2K HD, 4K UHD
Life Span
100000 Hours
Working Temperature/Humidity
-20C-50C / 10%-80%RH (No Condensation)
Storage Temperature/Humidity
-20C-55C / 10%-85%RH (No Condensation)
Certification
BIS / CE / CB / ROHS / EAC
