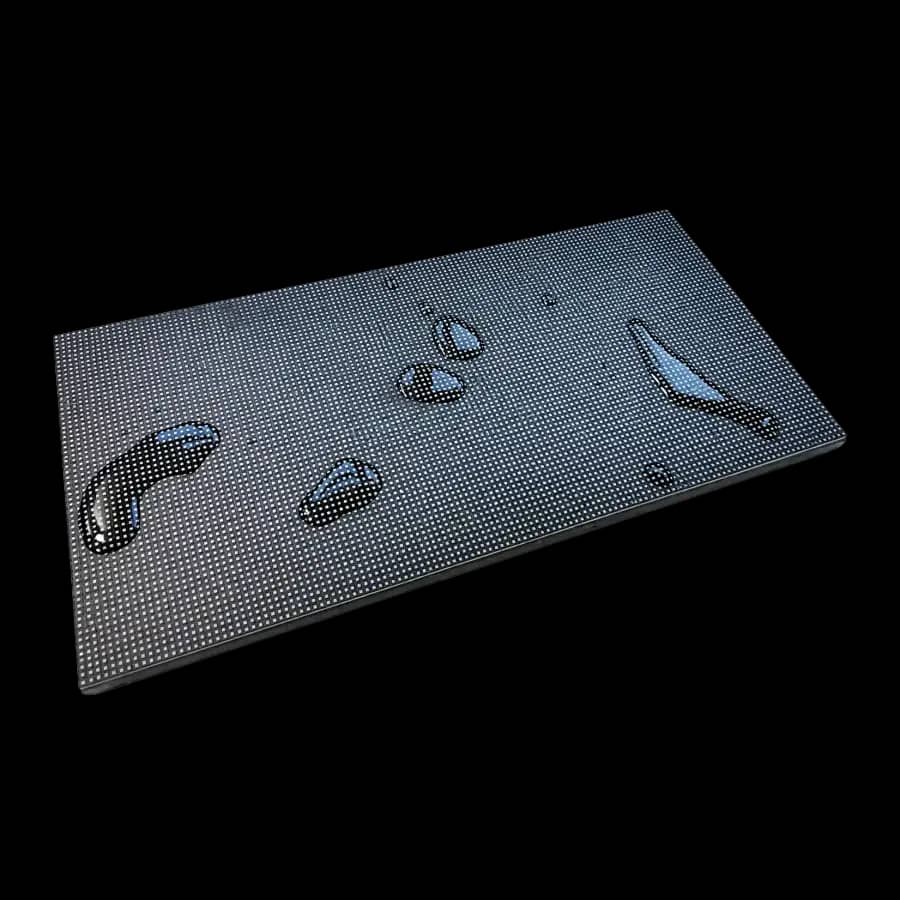

P2.5 Indoor GOB LED Display Module

P2.5 Indoor GOB LED Display Module

৳ 3,550 - 4,950

Request a QuoteView Specification

Key Features

  • 2.5mm pixel pitch for clear indoor viewing
  • GOB-protected SMD2121 LED type with 128x64 module resolution
  • 450-500 cd/m2 brightness with 5000:1 contrast ratio
  • 3840Hz standard refresh rate with 7680Hz optional
  • 2K HD and 4K UHD video support
  • 100000-hour lifespan with BIS, CE, CB, ROHS, and EAC certification

Explore Related LED Display Solutions

Product Description

The P2.5 Indoor GOB LED Display Module is a dependable indoor display solution for commercial signage, meeting rooms, retail stores, auditoriums, halls, and indoor advertising screens. With 2.5mm pixel pitch, GOB-protected SMD2121 LED type, 128x64 module resolution, 160000 dot/m2 pixel density, 450-500 cd/m2 brightness, 5000:1 contrast ratio, 3840Hz standard refresh rate, and optional 7680Hz refresh rate, it delivers smooth playback, clear visuals, better surface protection, and reliable long-term performance.

Product Specification

Pixel Pitch
2.5mm
LED Type
GOB SMD2121
Module Resolution
128x64 = 8192 Pixels
Pixel Density
160000 dot/m2
Module Size
W320mm x H160mm x D16.6mm
Module Weight
0.38+/-0.02kg
HUB
HUB75
Single-dot Brightness Calibration
Support
Brightness
450-500 cd/m2
Color Temperature
2000K-9300K Adjustable
Beam Angle
140deg / 140deg
Brightness/Color Uniformity
>=98%
Contrast Ratio
5000:1
Input Power Max
488 W/m2
Input Power Typical
163 W/m2
Power Supply Input Voltage
AC90-132V / AC186-264V, 47-63Hz
Frame Changing Frequency
60Hz
Refresh Rate
3840Hz Standard / 7680Hz Optional
Processing Depth
12-14 Bit
Video Support
2K HD, 4K UHD
Life Span
100000 Hours
Working Temperature/Humidity
-20C-45C / 10%-50%RH (No Condensation)
Storage Temperature/Humidity
-20C-50C / 10%-60%RH (No Condensation)
Certification
BIS / CE / CB / ROHS / EAC
