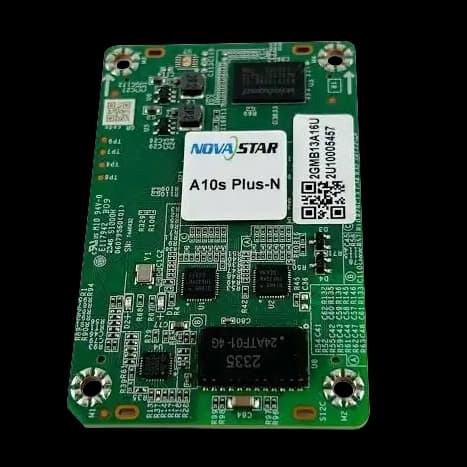

NovaStar A10s-N Plus LED Receiving Card
৳ 3,800
View Details
LED Display Receiving Card in Bangladesh
A receiving card is the cabinet-level control board that receives data from an LED Display Controller and drives the LED modules inside the screen. It is a small part, but it decides scan behavior, cabinet mapping, refresh stability, grayscale performance, and service compatibility. Arozex Technologies plans receiving cards as part of the complete LED Display system.
Receiving Card Compatibility
Receiving cards must match the controller ecosystem, cabinet wiring, module resolution, scan type, firmware version, and configuration file. This matters for Indoor LED Display projects with fine pixel pitch, Outdoor LED Display projects with long signal routes, and LED Video Wall projects where color and mapping consistency are critical.
| Check | Why It Matters |
|---|---|
| Controller brand | NovaStar, Huidu, Colorlight, or another ecosystem should be confirmed before replacement. |
| Cabinet file | The receiving card configuration file protects scan settings, module layout, and cabinet behavior. |
| Port loading | Correct Ethernet output loading prevents unstable display behavior and signal loss. |
| Firmware | Firmware mismatch can create upload failure, missing features, or inconsistent output. |
How to Choose an LED Display Receiving Card
The right receiving card depends on controller brand, module type, scan configuration, screen resolution, refresh target, cabinet wiring, and service workflow. Selection should be checked before product replacement, not after installation starts.
Controller Ecosystem
NovaStar, Huidu, Colorlight, and other systems use different software, firmware, and card behavior. The receiving card should match the active controller ecosystem.
Module Scan Type
Scan type, HUB interface, module resolution, and cabinet wiring directly affect mapping. A mismatch can create distorted output or missing image areas.
Refresh and Grayscale
High refresh rate and smooth grayscale matter for LED video walls, stage screens, studios, and camera-facing display projects.
Receiving Card Service and Replacement Checklist
A careful service workflow protects cabinet mapping, reduces downtime, and helps the LED display return to stable operation after replacement.
Take photos of the current receiving card, cable route, HUB connection, and cabinet layout.
Back up configuration files before replacing cards or changing firmware.
Confirm module resolution, scan type, cabinet size, pixel pitch, and controller model.
Test Ethernet loading, power supply voltage, data cable condition, and port mapping.
Keep spare receiving cards and documented cabinet files for long-term maintenance.
LED Display Receiving Card FAQ
What does an LED display receiving card do?
An LED display receiving card receives mapped data from the controller and drives the LED modules inside a cabinet or cabinet section.
Can I replace a receiving card without changing the controller?
Only when the replacement receiving card is compatible with the controller ecosystem, firmware, scan configuration, and cabinet wiring.
Why should the cabinet configuration file be backed up?
The cabinet configuration file stores scan type, module layout, mapping, and receiving card settings. A backup helps restore the LED display correctly after card replacement or controller service.
Which receiving card is best for an LED video wall?
The best receiving card depends on controller brand, pixel pitch, module resolution, refresh rate target, cabinet wiring, grayscale requirement, and service availability.
Need Receiving Card Support?
Share the controller model, receiving card photo, cabinet size, module type, and screen symptoms. Arozex can help verify compatibility, restore configuration, and plan replacement parts.
