Viewing Distance
Pixel pitch should be selected from the closest viewer position so text, video, and graphics remain clear.

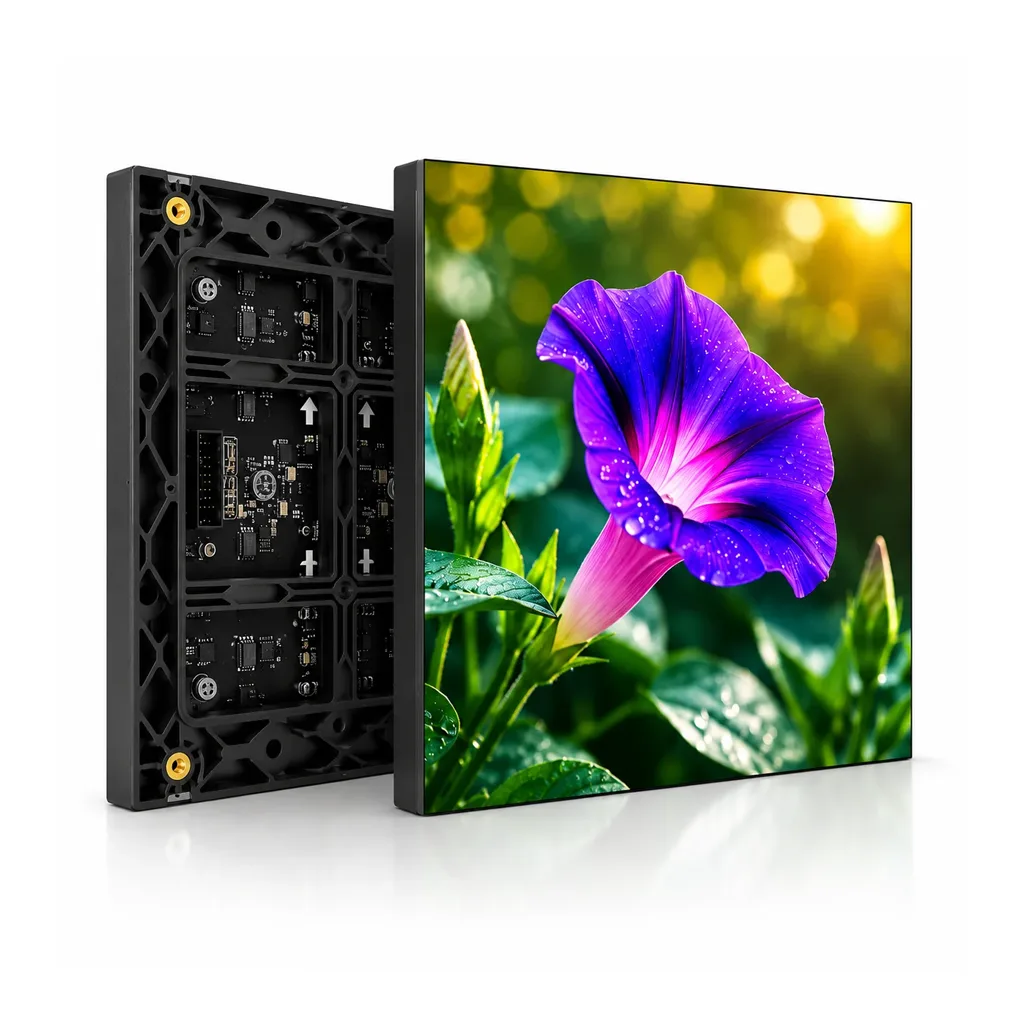

P3 Indoor LED Display Panel
৳ 6,400 - 8,200
Key Features
- 3mm pixel pitch for practical indoor viewing distance
- SMD2121 LED type with 64x64 module resolution
- 102400 dot/m2 pixel density
- >=500 cd/m2 brightness with 5000:1 contrast ratio
- 3840Hz standard refresh rate with 7680Hz optional
- 2K HD and 4K UHD video support
- 100000-hour lifespan with BIS, CE, CB, ROHS, and EAC certification
Explore Related LED Display Solutions
Product Description
The P3 Indoor LED Display is built for indoor signage projects where reliable brightness, stable performance, and smooth content playback are important. With 3mm pixel pitch, SMD2121 LED type, 64x64 module resolution, 102400 dot/m2 pixel density, >=500 cd/m2 brightness, 5000:1 contrast ratio, 3840Hz standard refresh rate, and optional 7680Hz refresh rate, it is suitable for shopping centers, halls, stages, display boards, retail areas, and business advertising walls.
Product Specification
Pixel Pitch
3mm
LED Type
SMD2121
Module Resolution
64x64 = 4096 Pixels
Pixel Density
102400 dot/m2
Module Size
W192mm x H192mm x D14mm
Module Weight
0.23+/-0.02kg
HUB
HUB75
Single-dot Brightness Calibration
Support
Brightness
>=500 cd/m2
Color Temperature
2000K-9300K Adjustable
Beam Angle
140deg / 140deg
Brightness/Color Uniformity
>=98%
Contrast Ratio
5000:1
Input Power Max
543 W/m2
Input Power Typical
180 W/m2
Power Supply Input Voltage
AC90-132V / AC186-264V, 47-63Hz
Frame Changing Frequency
60Hz
Refresh Rate
3840Hz Standard / 7680Hz Optional
Processing Depth
12-14 Bit
Video Support
2K HD, 4K UHD
Life Span
100000 Hours
Working Temperature/Humidity
-20C-45C / 10%-50%RH (No Condensation)
Storage Temperature/Humidity
-20C-50C / 10%-60%RH (No Condensation)
Certification
BIS / CE / CB / ROHS / EAC
P3 Indoor LED Display Panel Project Planning
LED display product selection should match the viewing distance, installation environment, content type, controller system, and maintenance plan.
Indoor or Outdoor Use
Brightness, waterproofing, cabinet protection, ventilation, and service access change based on the installation environment.
System Compatibility
Module, cabinet, receiving card, controller, power supply, and content source should be planned as one complete LED display system.
Before Buying P3 Indoor LED Display Panel
Confirm screen size, pixel pitch, viewing distance, brightness, and installation location.
Check cabinet type, controller capacity, receiving card compatibility, and power supply load.
Review content type, refresh rate, service access, warranty, and spare parts availability.
Request a site-specific quotation instead of comparing only per-square-foot pricing.
