Viewing Distance
Pixel pitch should be selected from the closest viewer position so text, video, and graphics remain clear.

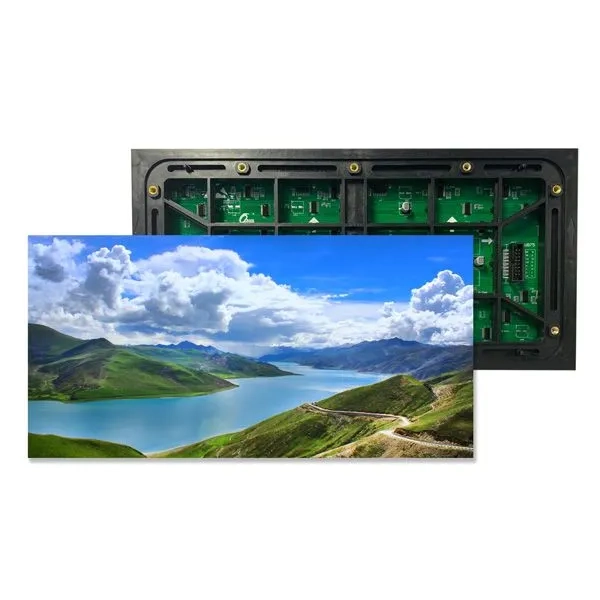

P5 Outdoor led display board
৳ 5,800 - 7,600
Key Features
- 5mm pixel pitch for outdoor advertising screens
- SMD1921 LED technology with 40000 dot/m2 pixel density
- 4500-5000 cd/m2 brightness for clear outdoor visibility
- 3840Hz refresh rate with 12-14 bit processing depth
- Reliable 100000-hour lifespan for fixed installations
Explore Related LED Display Solutions
Product Description
The P5 outdoor LED display screen features a 5mm pixel pitch, SMD1921 LED technology, 64x32 module resolution, 40000 dot/m2 pixel density, 4500-5000 cd/m2 brightness, 3840Hz refresh rate, and 5000:1 contrast ratio. It is suitable for outdoor billboards, storefront signage, transport displays, roadside advertising, event screens, and commercial digital signage projects.
Product Specification
Pixel Pitch
5mm
LED Type
SMD1921
Module Resolution
64x32 = 2048 Pixels
Pixel Density
40000 dot/m2
Module Size
W320mm x H160mm x D18mm
Module Weight
0.48+/-0.02kg
HUB
HUB75
Single-dot Brightness Calibration
Support
Brightness
4500-5000 cd/m2
Color Temperature
6500K (1000K-9500K Adjustable)
Beam Angle
140deg / 140deg
Brightness/Color Uniformity
>=98%
Contrast Ratio
5000:1
Input Power Max
879 W/m2
Input Power Typical
293 W/m2
Power Supply Input Voltage
AC90-132V / AC186-264V, 47-63Hz
Frame Changing Frequency
60Hz
Refresh Rate
3840Hz
Processing Depth
12-14 Bit
Video Support
2K HD, 4K UHD
Life Span
100000 Hours
Working Temperature/Humidity
-20C-50C / 10%-80%RH (No Condensation)
Storage Temperature/Humidity
-20C-55C / 10%-85%RH (No Condensation)
Certification
BIS / CE / CB / ROHS / EAC
P5 Outdoor led display board Project Planning
LED display product selection should match the viewing distance, installation environment, content type, controller system, and maintenance plan.
Indoor or Outdoor Use
Brightness, waterproofing, cabinet protection, ventilation, and service access change based on the installation environment.
System Compatibility
Module, cabinet, receiving card, controller, power supply, and content source should be planned as one complete LED display system.
Before Buying P5 Outdoor led display board
Confirm screen size, pixel pitch, viewing distance, brightness, and installation location.
Check cabinet type, controller capacity, receiving card compatibility, and power supply load.
Review content type, refresh rate, service access, warranty, and spare parts availability.
Request a site-specific quotation instead of comparing only per-square-foot pricing.
